Description
Key Features
Minimum Dimensions: 595 mm x 649 mm (W x H)
Weight: 25 kg
Airflow: 8,000 m³/h
Pressure drop: up to 210 Pa
Blast wave pressure resistance: continuous 0.3 to 10 kg/cm² (30–1000 kPa)

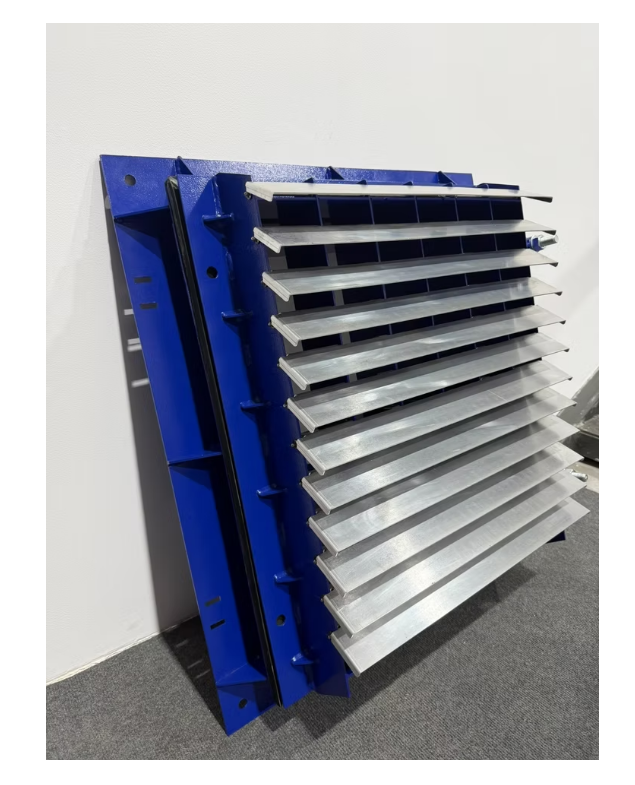

UZS-8 Explosion Damper – Emergency Access Panel
The UZS-8 is an assembly that includes the UZS-1 explosion damper mounted in a special metal housing and can be used as an emergency access panel.The UZS protection section is designed to protect ventilation equipment in special-purpose buildings from the effects of a prolonged shock wave with a pressure of up to 10 kg/cm² (1000 kPa).The protective sections automatically close under the pressure of the blast wave, sealing ventilation openings or air ducts and providing protection against the blast wave penetrating the shelter.
