Description
Key Features
Minimum Dimensions: 815 mm x 2197 mm x 360 mm
Weight: 200 kg
Airflow: 25,000 m³/h
Pressure drop: up to 210 Pa
Blast wave pressure resistance: continuous 0.3 to 10 kg/cm² (30–1000 kPa)

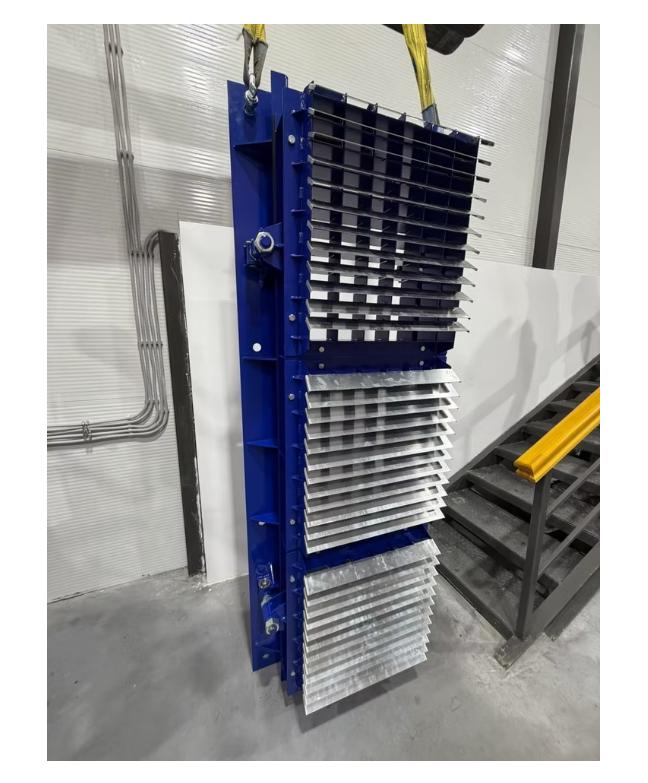

UZS-25 Explosion Dampers – Emergency Door
The UZS-25 is an assembly consisting of three UZS-1 explosion dampers mounted in a special metal housing and can be used as an emergency exit door/hatch or service door for shelter air ducts.The UZS protection section is designed to protect ventilation equipment in special-purpose buildings from the effects of a prolonged shock wave with a pressure of up to 10 kg/cm² (1000 kPa).The protective sections automatically close under the pressure of the blast wave, sealing ventilation openings or air ducts and providing protection against the blast wave penetrating the shelter.
