Wall Sleeves and Replacement Flanges

Wall sleeves are specially designed flanged pipes used to mount valves or ventilation ducts into walls. Arconik supplies a variety of sleeves, ranging in diameter from 4 inches to 32 inches, designed specifically for different applications (interior walls/exterior walls) and certified to various standards, suitable for different wall thicknesses. Wall sleeves are typically installed during the early stages of construction and are cast into the concrete, becoming a sturdy and integral part of the wall.

Description

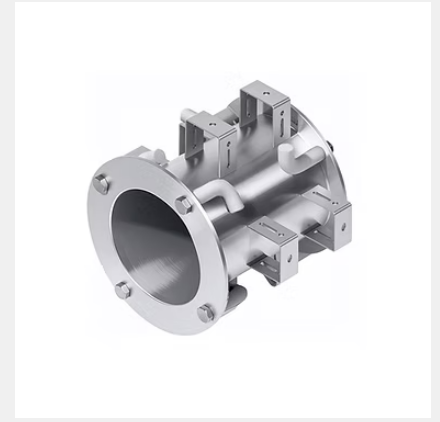

4-Inch Flanged Wall Sleeve – For Concrete Pouring
  • Number of bolts: 4

  • Bolt type: M16

  • Standard wall thickness: 300 mm and above

  • Breakaway plate: optional

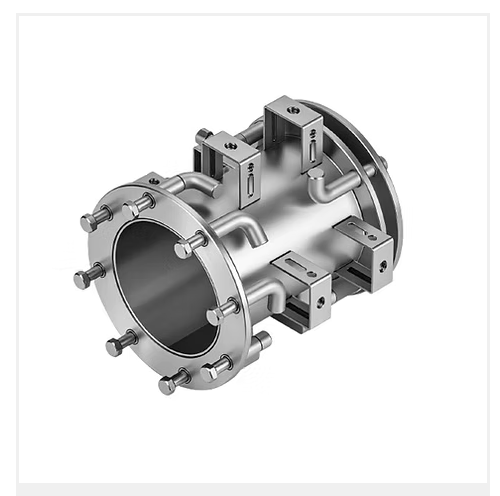

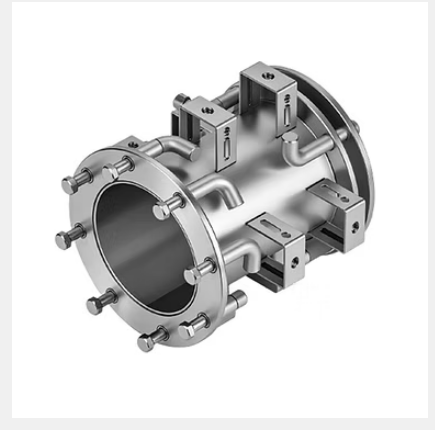

6" / 8" Flanged Wall Sleeve – For Concrete Pouring
  • Number of bolts: 8

  • Bolt type: M16

  • Standard wall thickness: 300 mm and above

  • Breakaway plate: optional

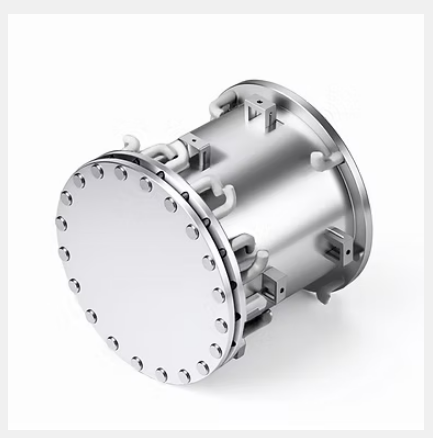

14" Flanged Wall Sleeve – For Concrete Pouring
  • Number of bolts: 12

  • Bolt type: M20

  • Standard wall thickness: 300 mm and above

  • Breakaway plate: optional

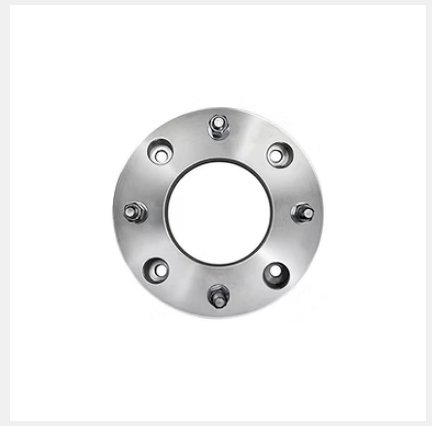

4" Replacement Flange – For Installation on an Existing Wall
  • Number of bolts: 4

8" Replacement Flange – For Installation on an Existing Wall
  • Number of bolts: 8

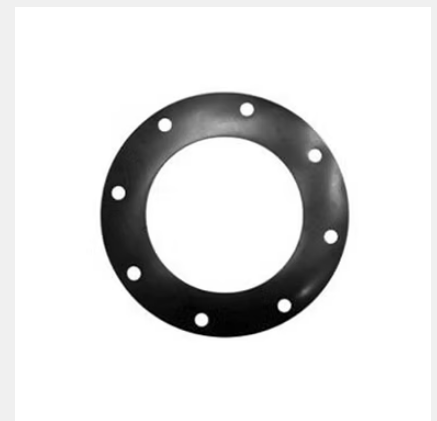

Chemical-Resistant Gasket – For Flanges
  • Number of bolts: 4 / 8

[/vc_row]
Key Features
  • Structural strength suitable for burst pressure and overpressure conditions
  • Corrosion-resistant coating options
  • Easy installation and maintenance with standard flange connections
